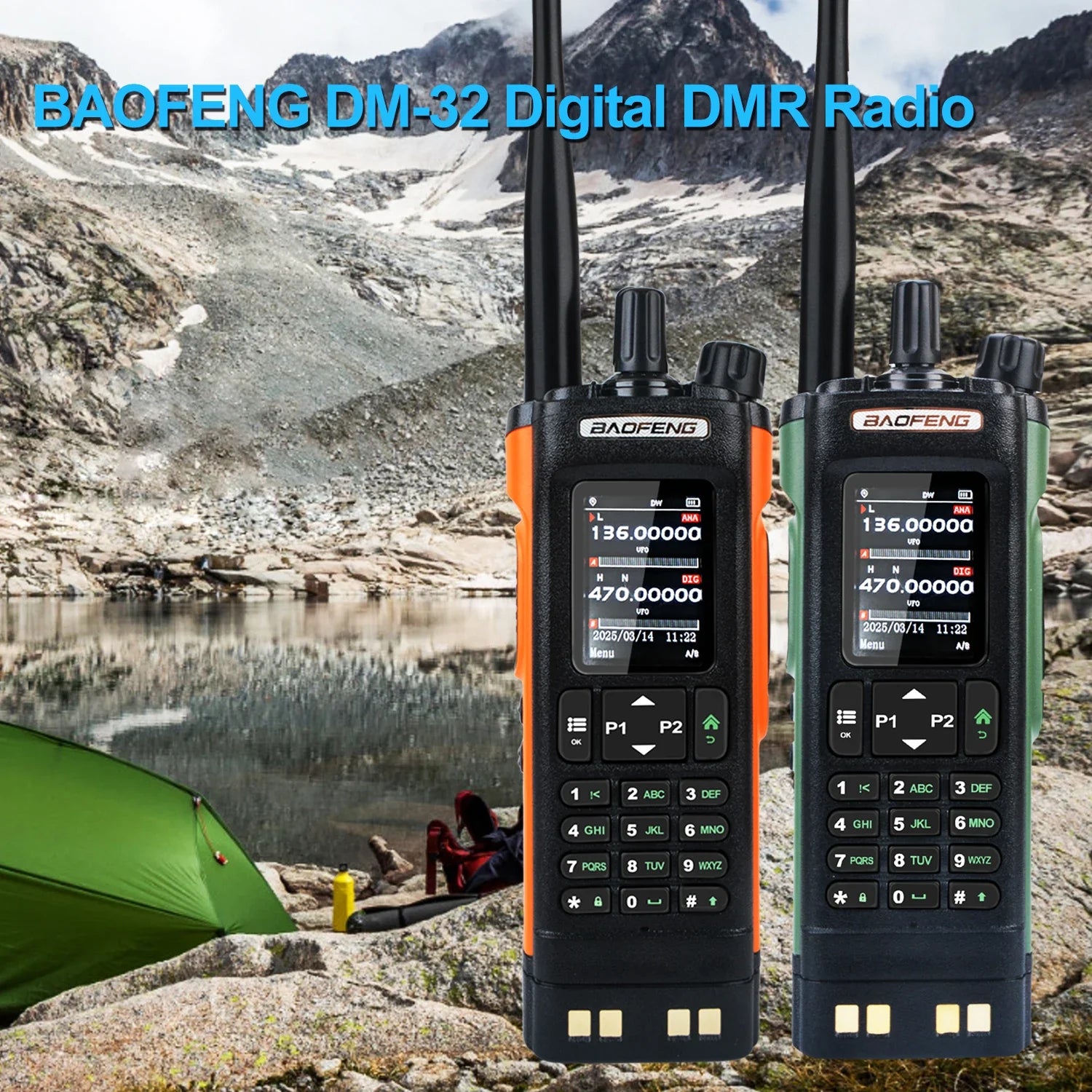

Baofeng DM-32 GPS APRS AES256 Encryption DMR Digital Analog UHF VHF Dual Band 8W Air Band receive FM Walkie Talkie DM-32UV
Feature:
-2.0” High Definition Large Screen
-2500mAh Type-C rechargeable Battery Pack

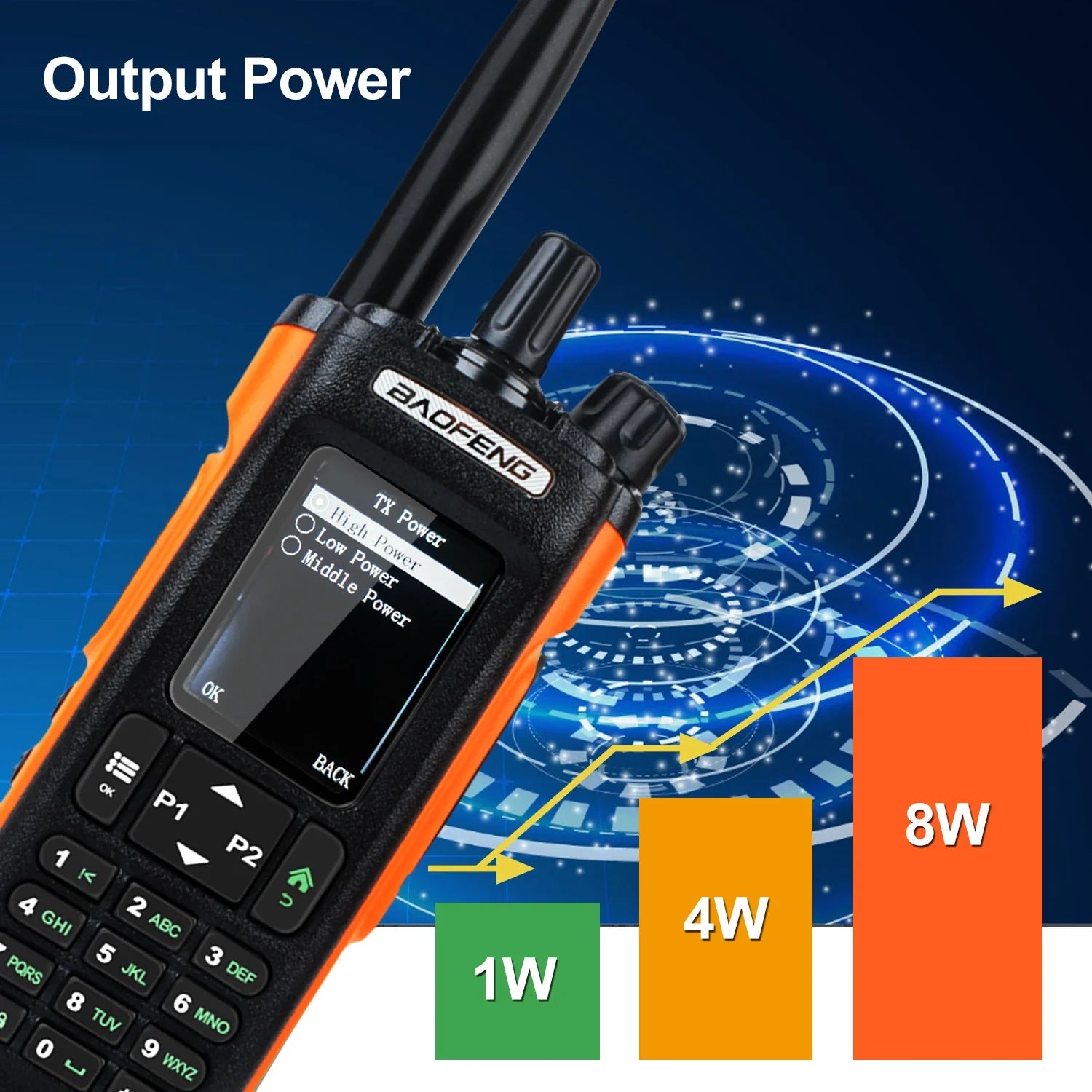

-H(8W)/M(4W)/L(1W) Output Power Selection
-4000 memory channels, 800+50,000(.CSV) Digital Contacts

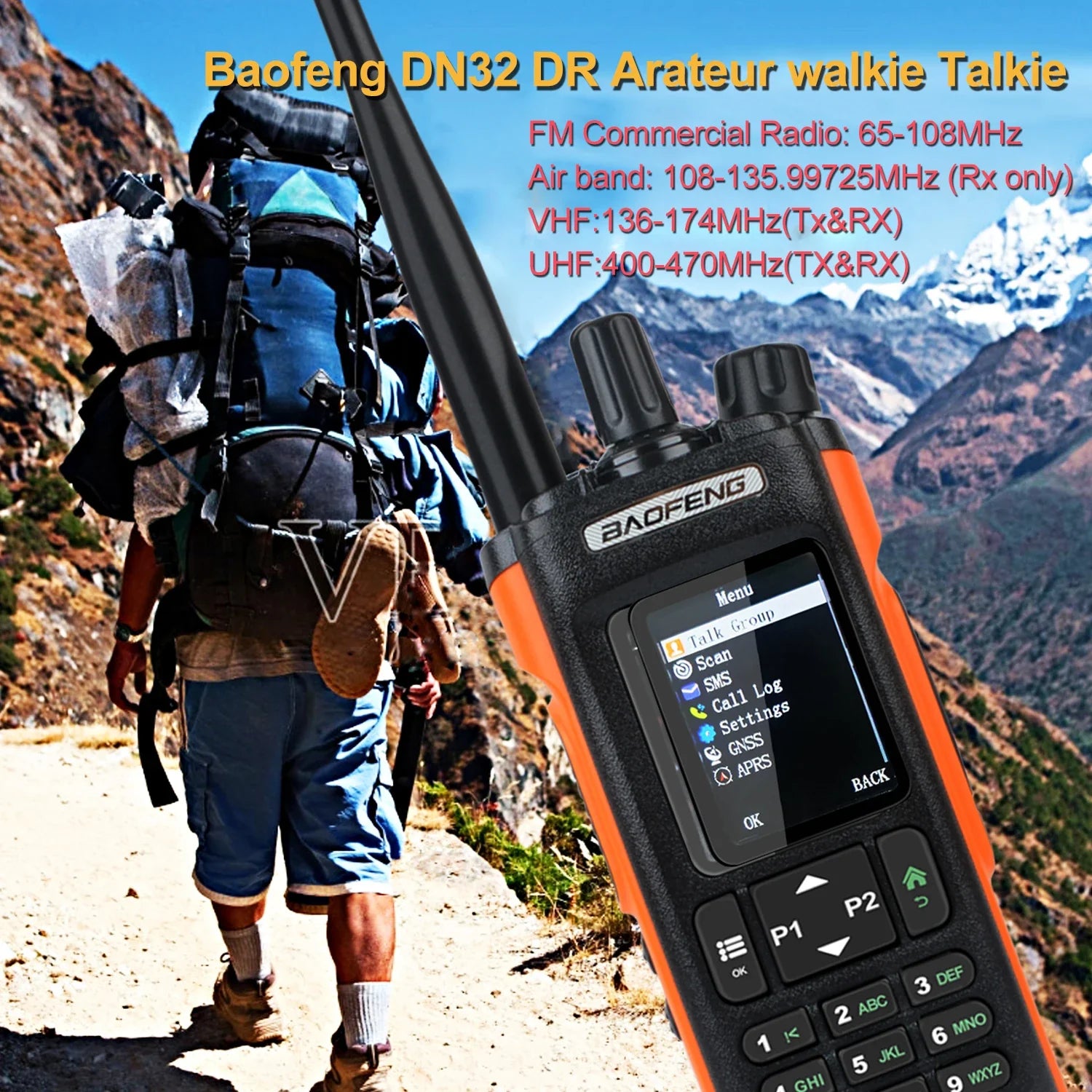

-Frequency Range:
FM Commercial Radio: 65-108MHz

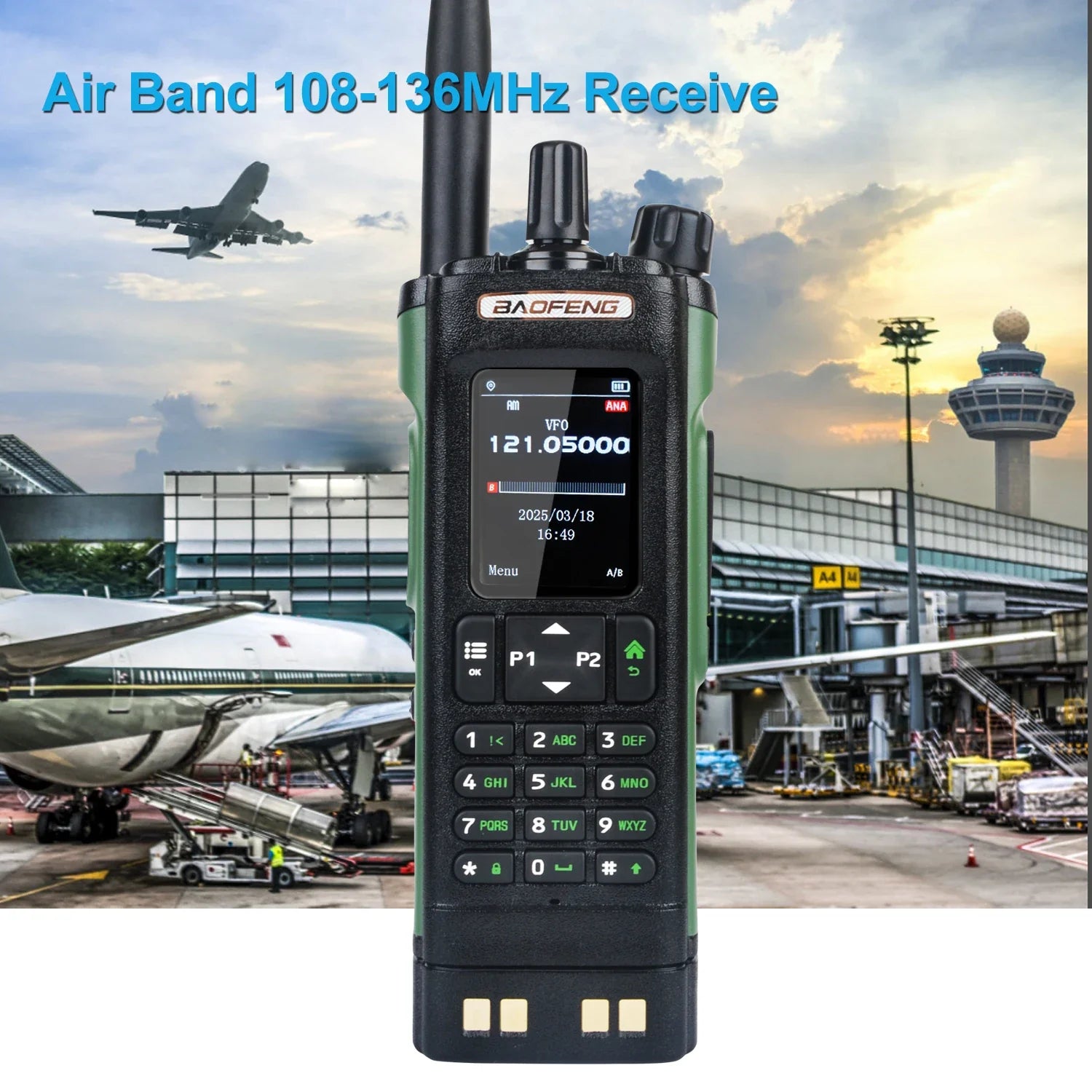

Air band: 108-135.99725MHz (Rx only)
VHF:136-174MHz(Tx&RX)
UHF:400-470MHz(TX&RX)
-Digital-Analog Compatibility,smooth transition
Supports both DMR digital and analog communication modes,ensuring smooth transition from the original analog products to digital products.
-TDMA Dual time slot technology,doubling the user capacity
Straight-through dual-capacity mode communication, realizing two groups of calls at the same time in a frequency point,saving more frequency resources.
-SK1/SK2/P1/P2 keys customization
-CHG Font, Ch,zone color customization
-VOX/Ana/Digi Mic Gain Adjustable
-DTMF/BDC1200/2TONE/5TONE for Analog Working Mode
-Dual Watch

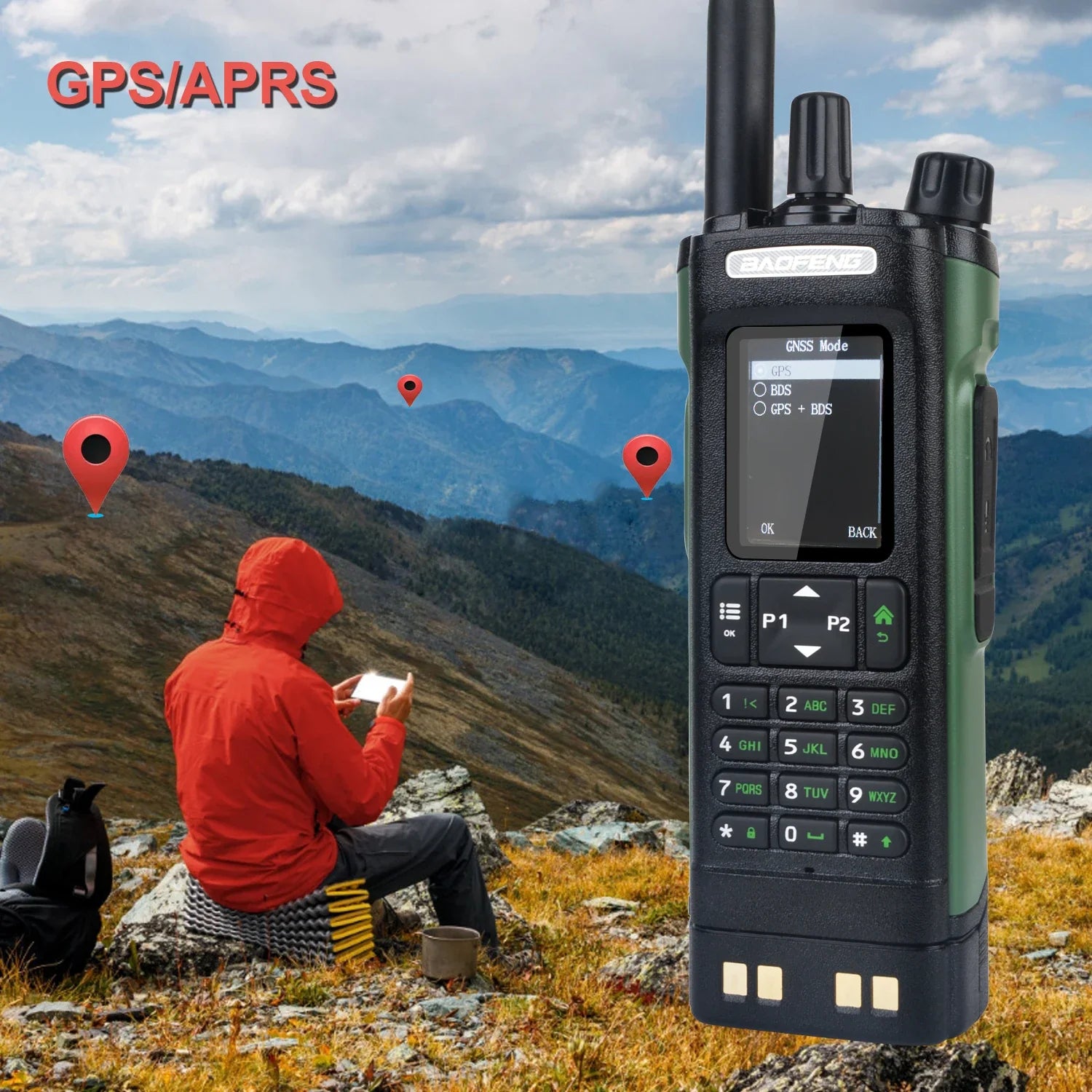

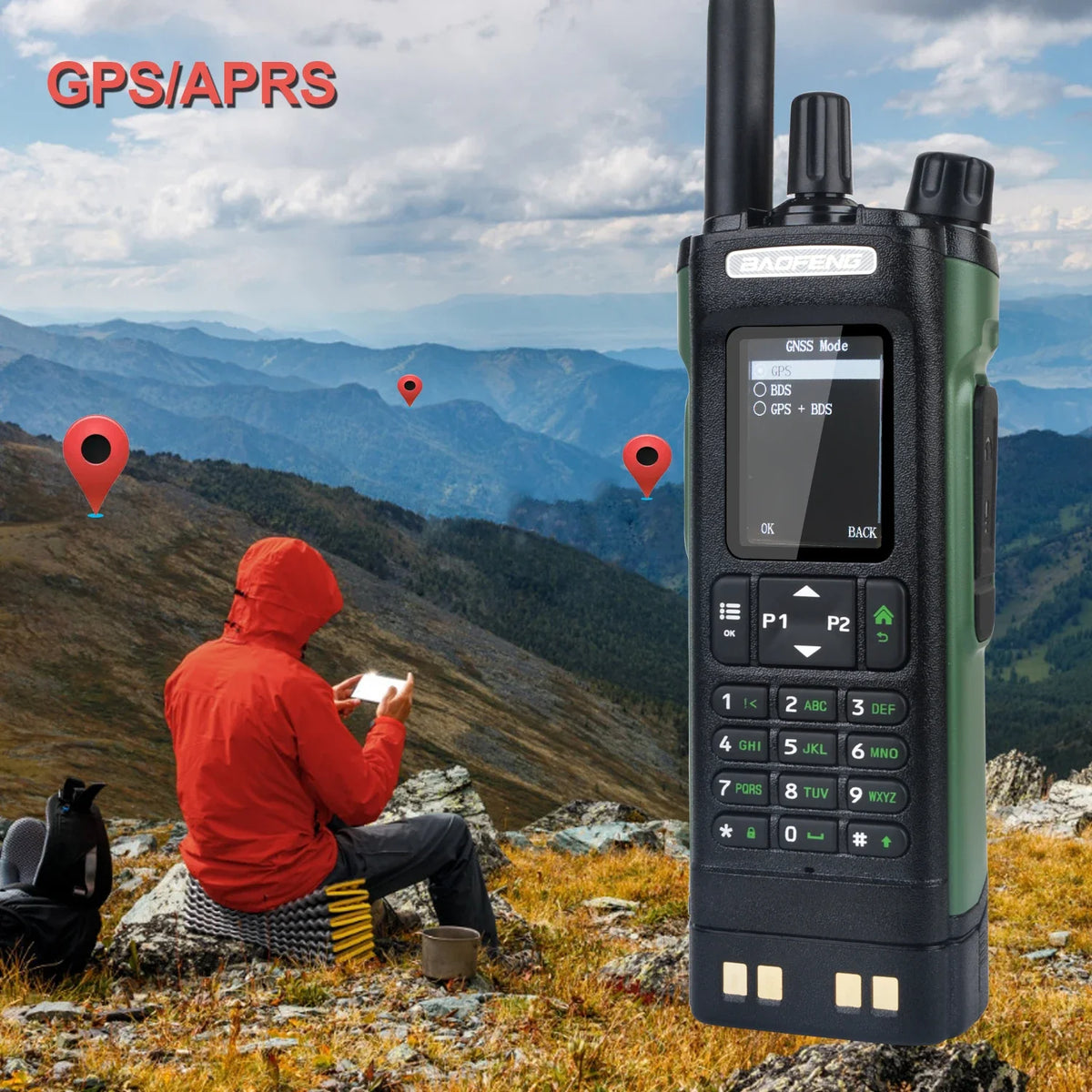

- Digital mode supports GPS/BeiDou position,APRS,Roaming
-AMBE+2TM Voice encoder, clear and loud voice, no noise interference

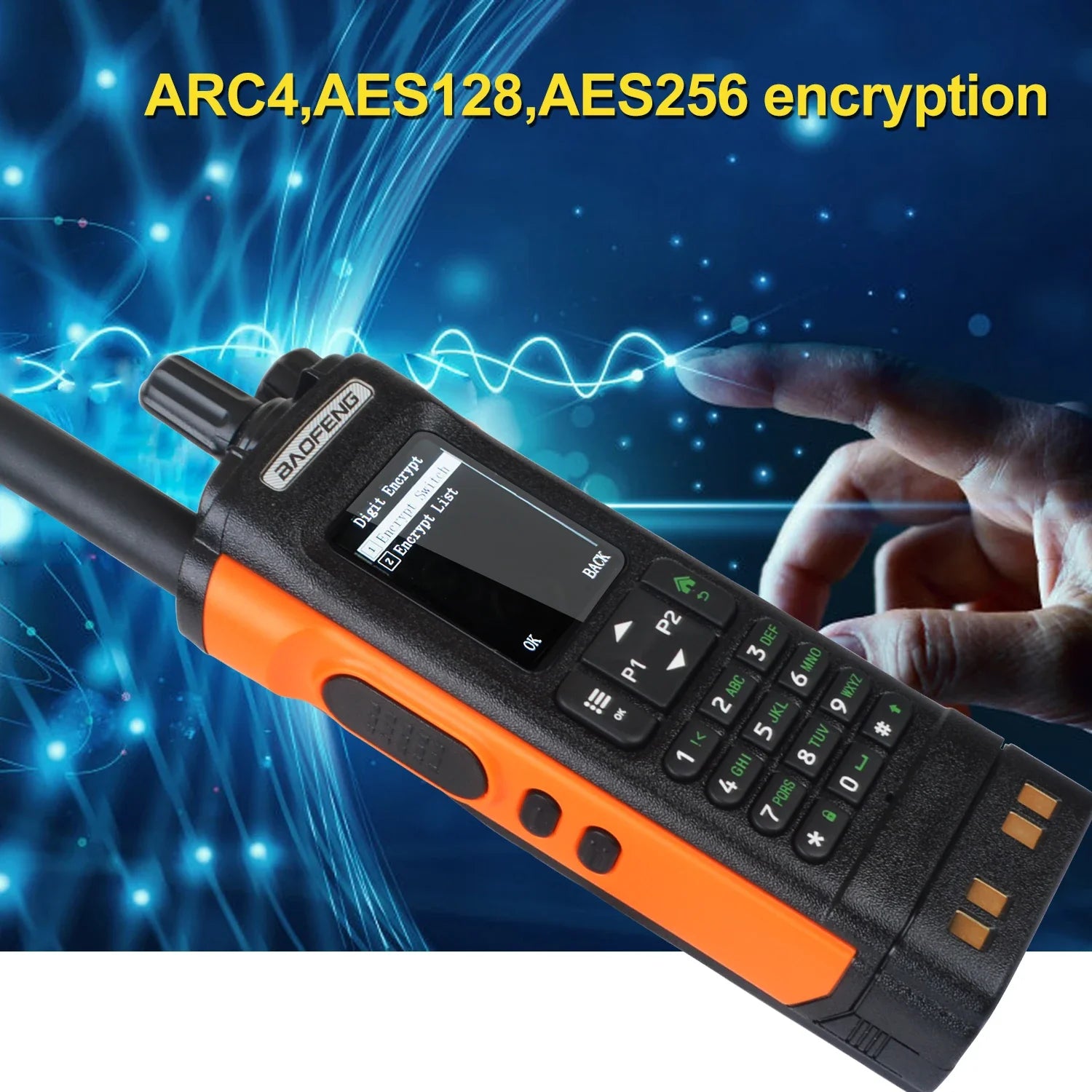

-Voice and data security in digital mode, support customized,ARC4,AES128,AES256 digital encryption
-Scanner: digital, analog hybrid scanning,frequency scanning, channel scanning,scanning by frequency range, CTC/DCS Scanning,scanning recovery mode selectable
-U.S.A/CA NOAA Weather broadcast Channels
-Freq Search （Wireless copy a frequency from another Radio）
-Mandown alarm
Technical Specifications
General | |
Frequency Range |
FM:65-108MHz (Commercial Radio Receive only) Air Band: 108-135.99725MHz(Receive only) VHF:136-174MHz (Tx&Rx) UHF:400-470MHz (Tx& Rx) |
Memory Channel |
4000 |
Digital Contacts |
800+50,000(.csv) |
Channel Spacing |
25KHz (Wide Band),12.5KHz(Narrow Band) |
Frequency Stability |
±2.5ppm |
Operating Temperature |
-10°cto 55°c |
Operating Voltage |
7.4V DC ±20%/(2500mAh) |
Dimension |
182*67*41mm(wide battery pack) |
Weight |
350g (with battery pack, antenna) |
Transmitting Part | |
Output Power |
High:8W,Middle:4W, Low:1W |
Output Consumption |
Analog ≤2.6A,Digital ≤1.5A |
Consumption |
≤0.18A |
FM Modulation |
16K0F3E 25KHz/14KOF3E 20KHz/11KOF3E12.5KHz |
4FSK Digital Modulation |
12.5KHz for data:7K60GCF,12.5KHz for data and voice:7K60FXE |
Modulation Distortion |
≤5% |
Signal-to-noise (Wide/Narrow) |
≥45dB 25KHz,≥40dB 12.5KHz |
Adjacent Channel Power |
≤-65dB,≤-60dB |
Audio Response |
+1~3dB |
Antenna Port Spurious |
9KHz-1GHz:≤-20dBm,1GHz-12.75GHz:≤-20dBm |
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
Vocoder Type |
AMBE+2TM |
Receiving Part | |
Analog Receive Sensitivity |
-122dBm(12dB SINAD) |
Digital Receive sensitivity |
-120dBm(BER≤5%) |
Audio Power |
≤1W |
Audio Distortion |
<10% |
Audio Response |
+1~-3dB |
Signal imitation |
≥70dB |
Inter-mediation(Wide/narrow) |
≥62dB/≥58dB |
Adjacent Channel Selectivity |
≥65dB/≥60dB |
Receive Current |
≤380mA |
PM Noise |
≥45dB 25KHz/≥40dB 12.5KHz |
*All specifications may be modified without prior notice or liability.
Package Contains:

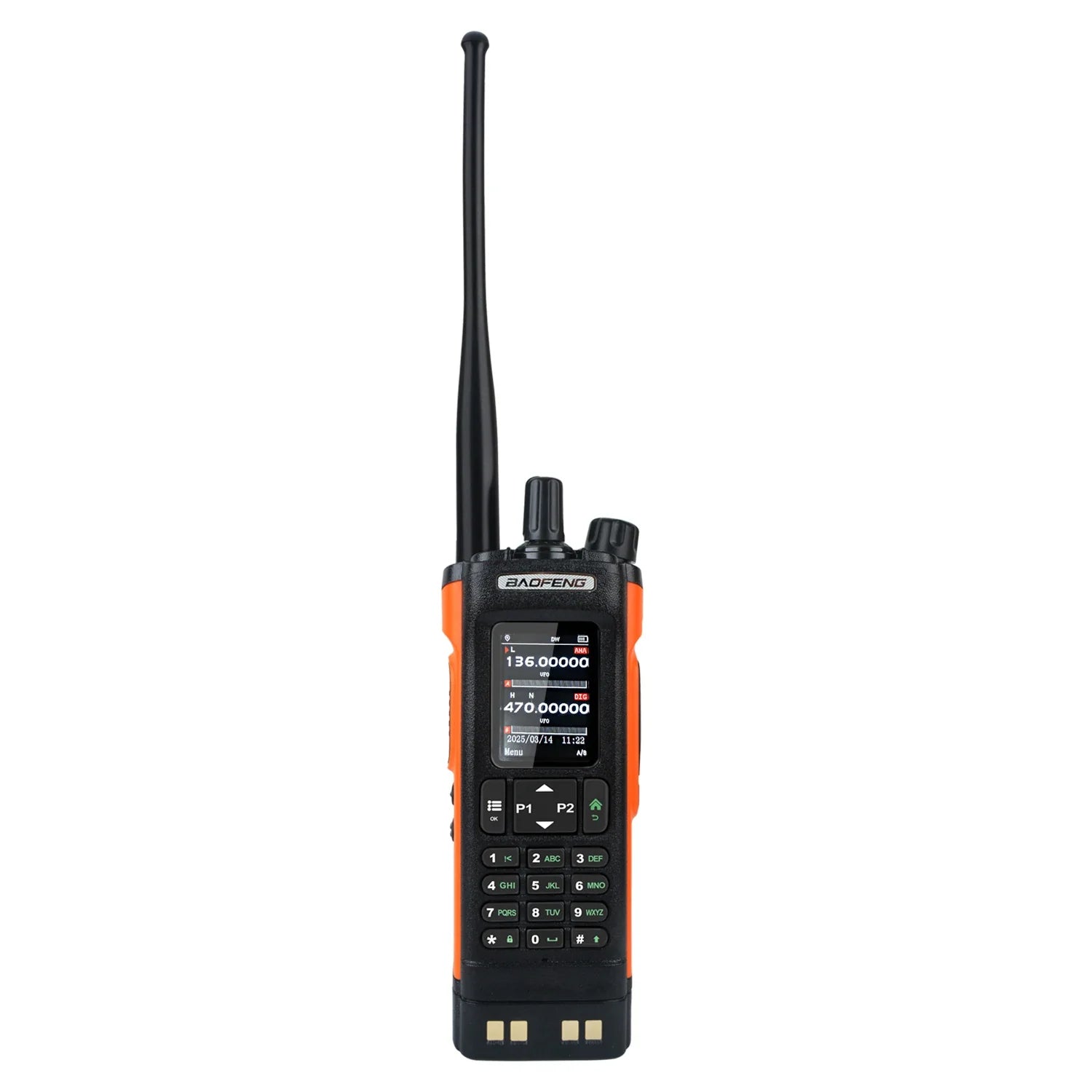

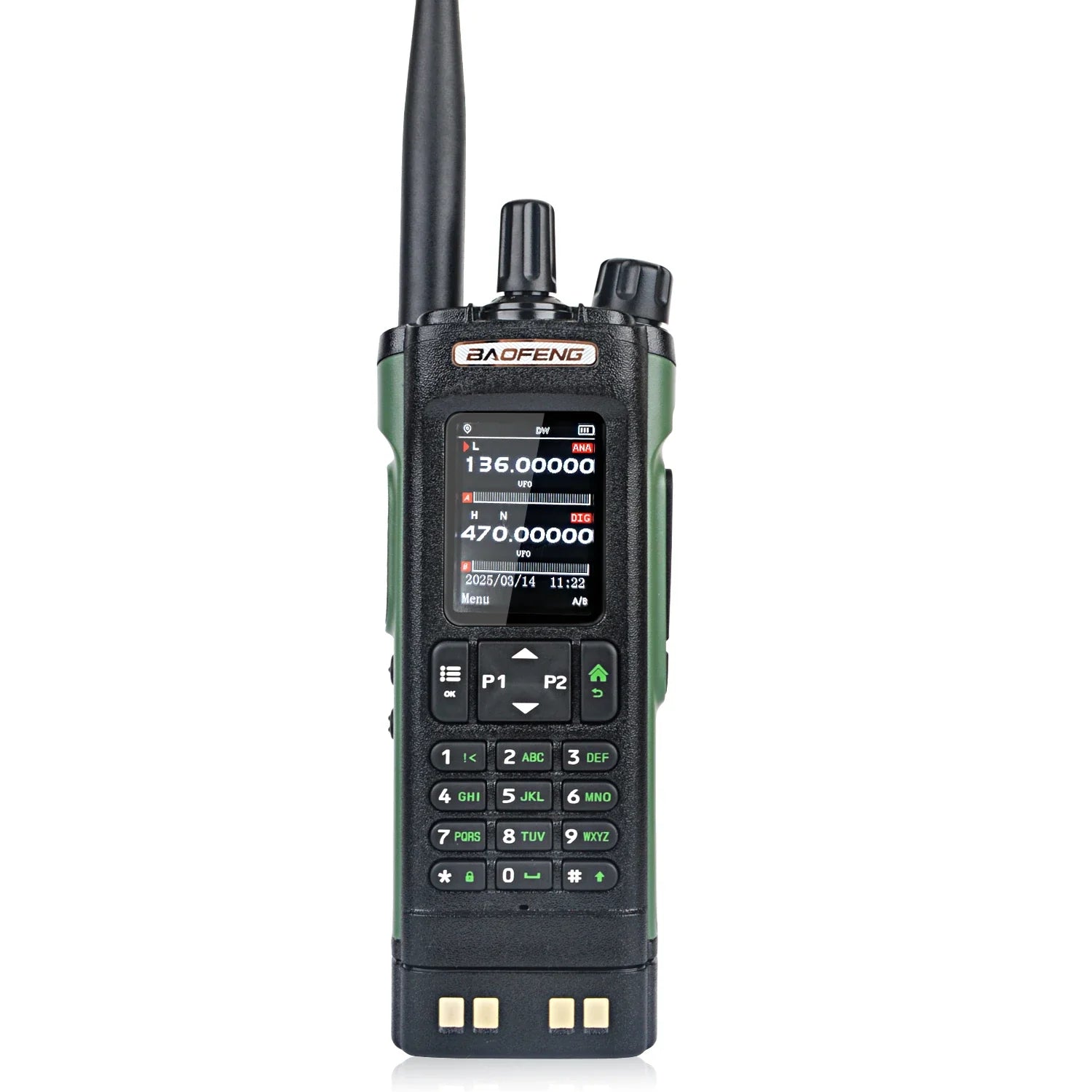

1×DM-32 DMR Digital Radio Body
1×7.4V2500mah Li-ion Battery Packwith USB-C Charging Port
1×SMA-Female Dual Band Antenna

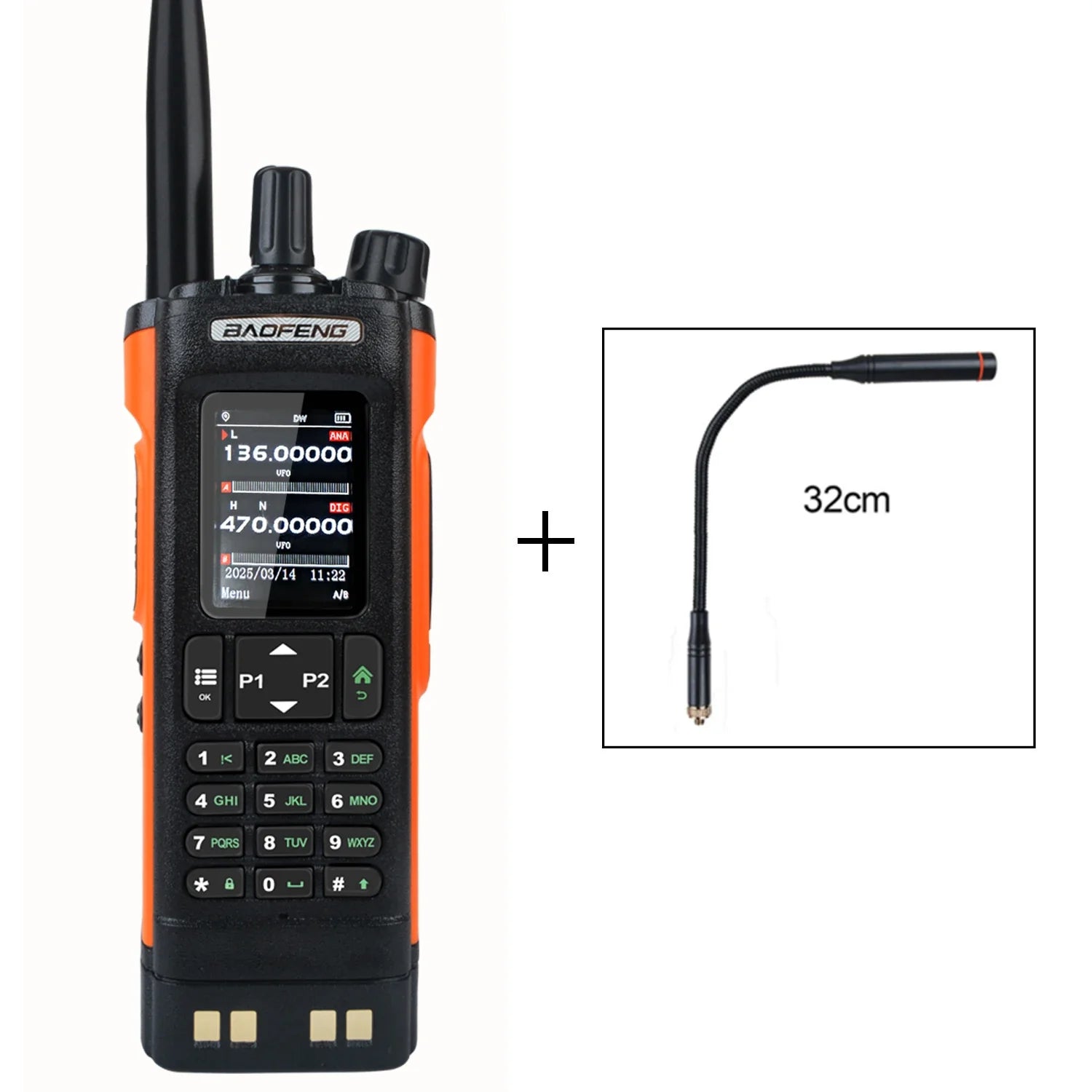

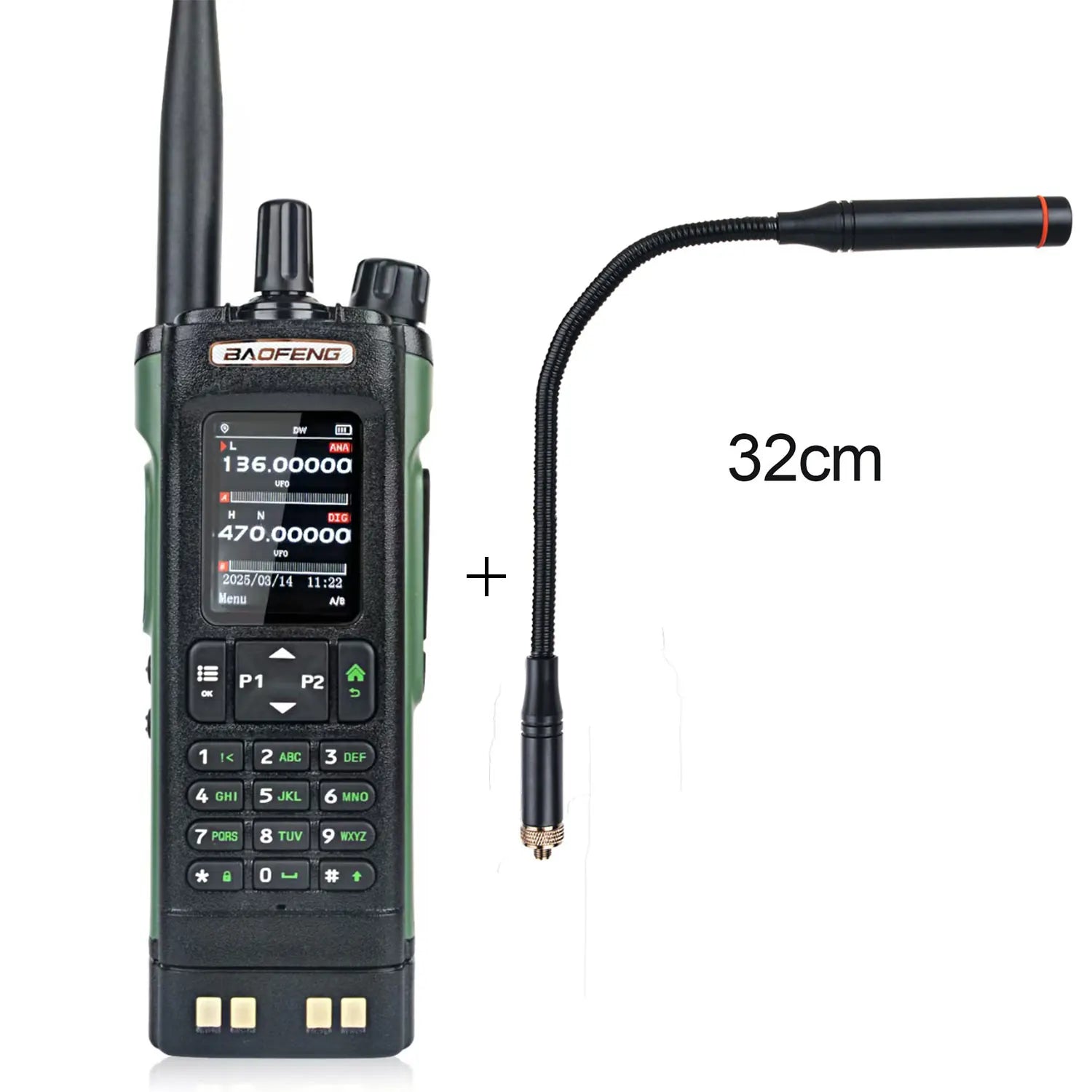

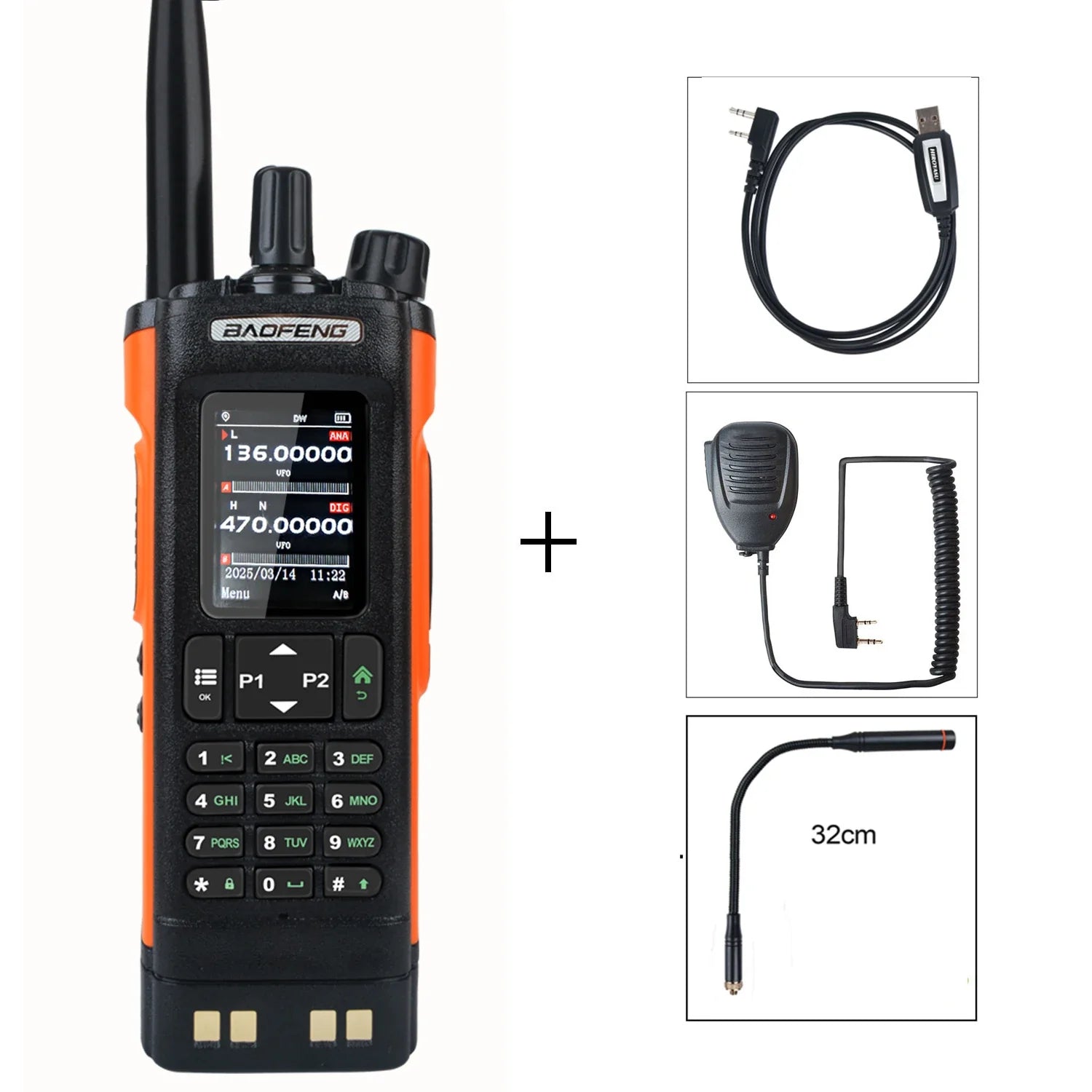

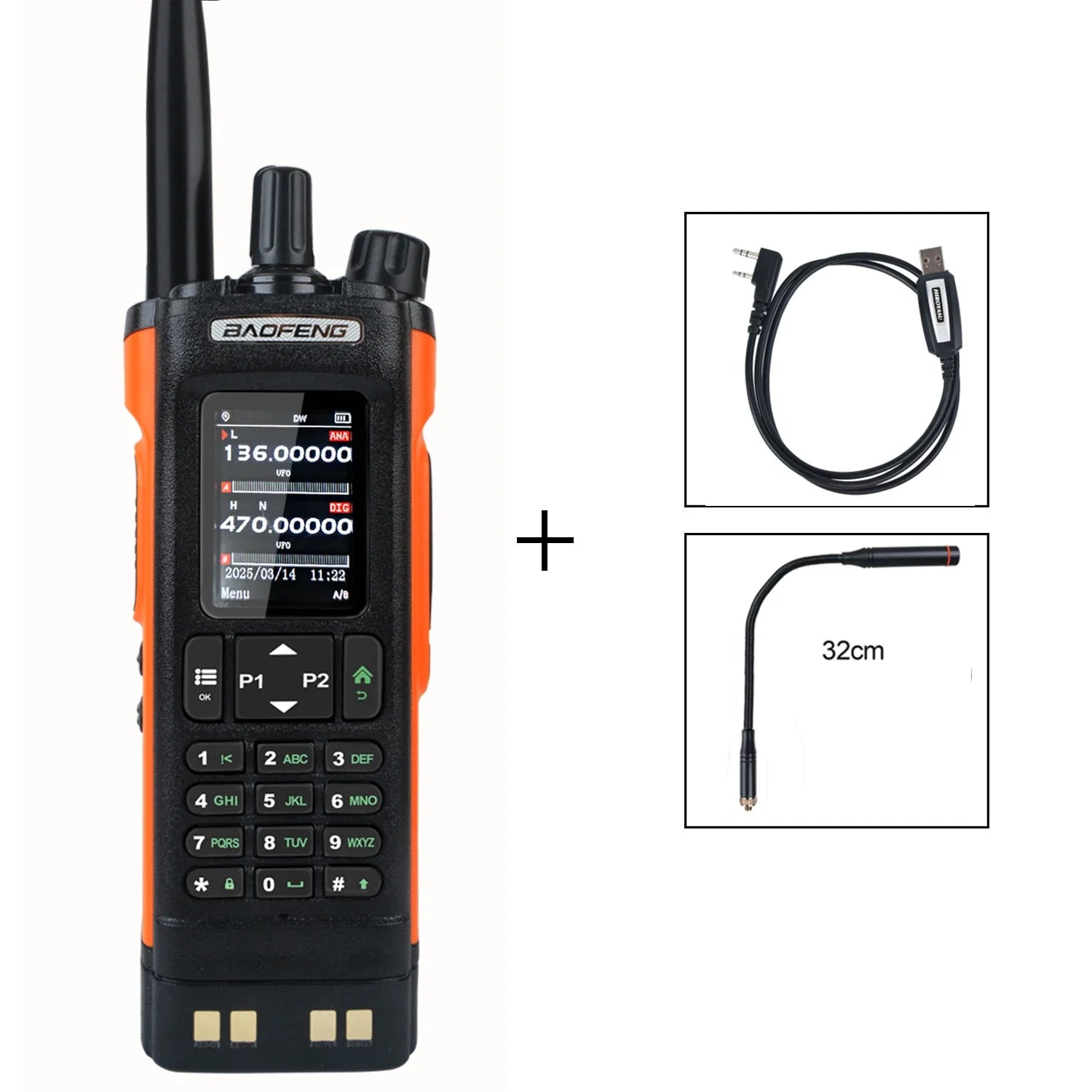

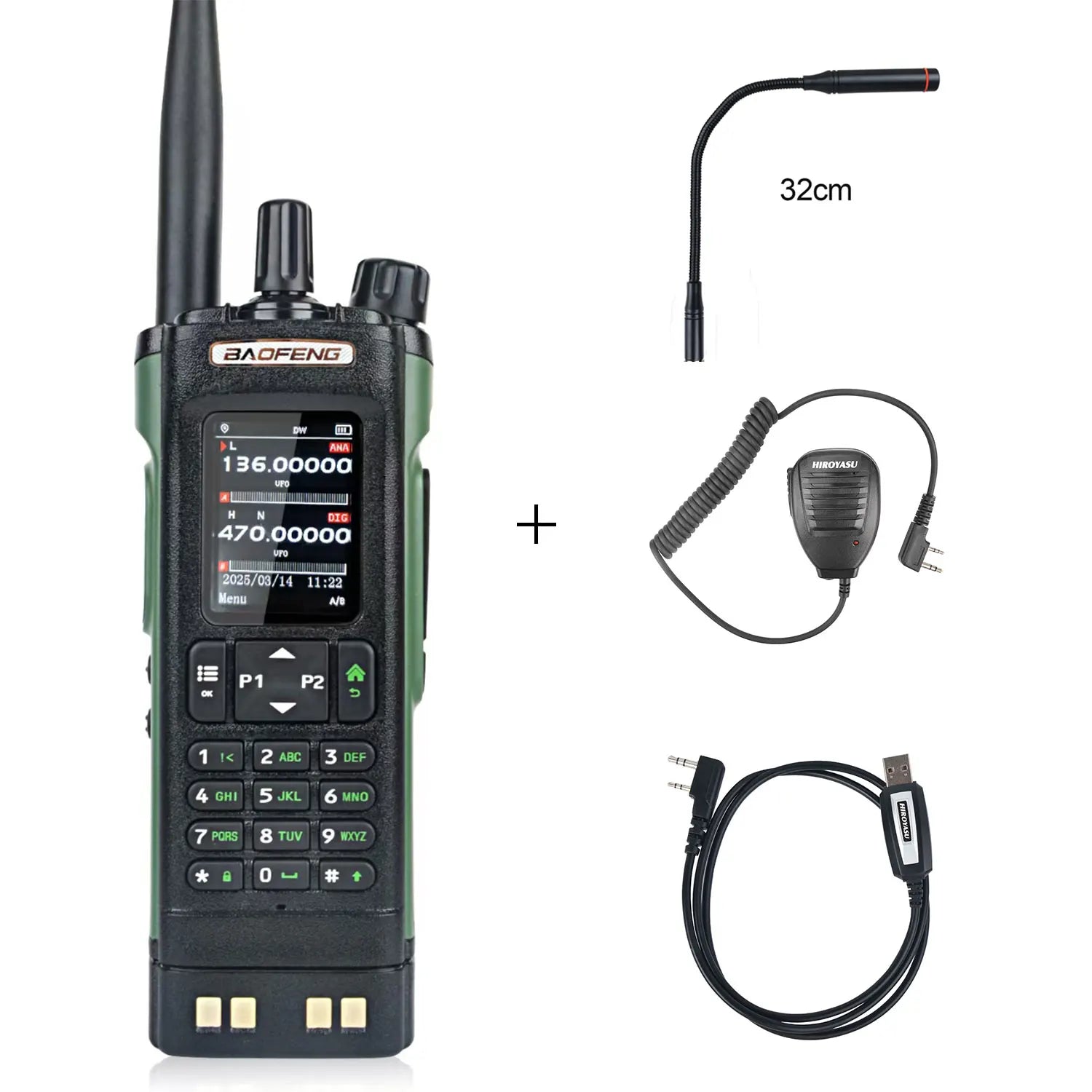

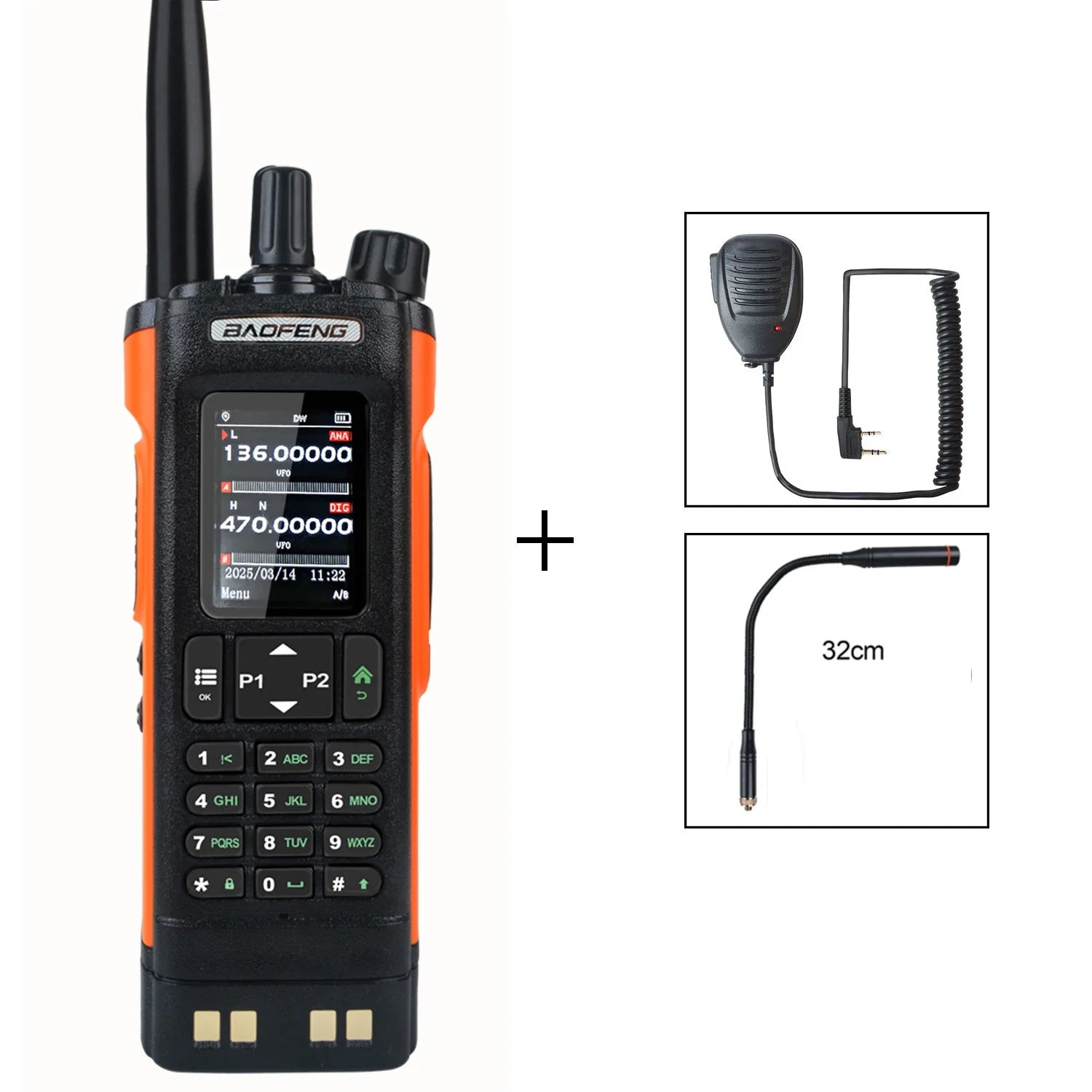

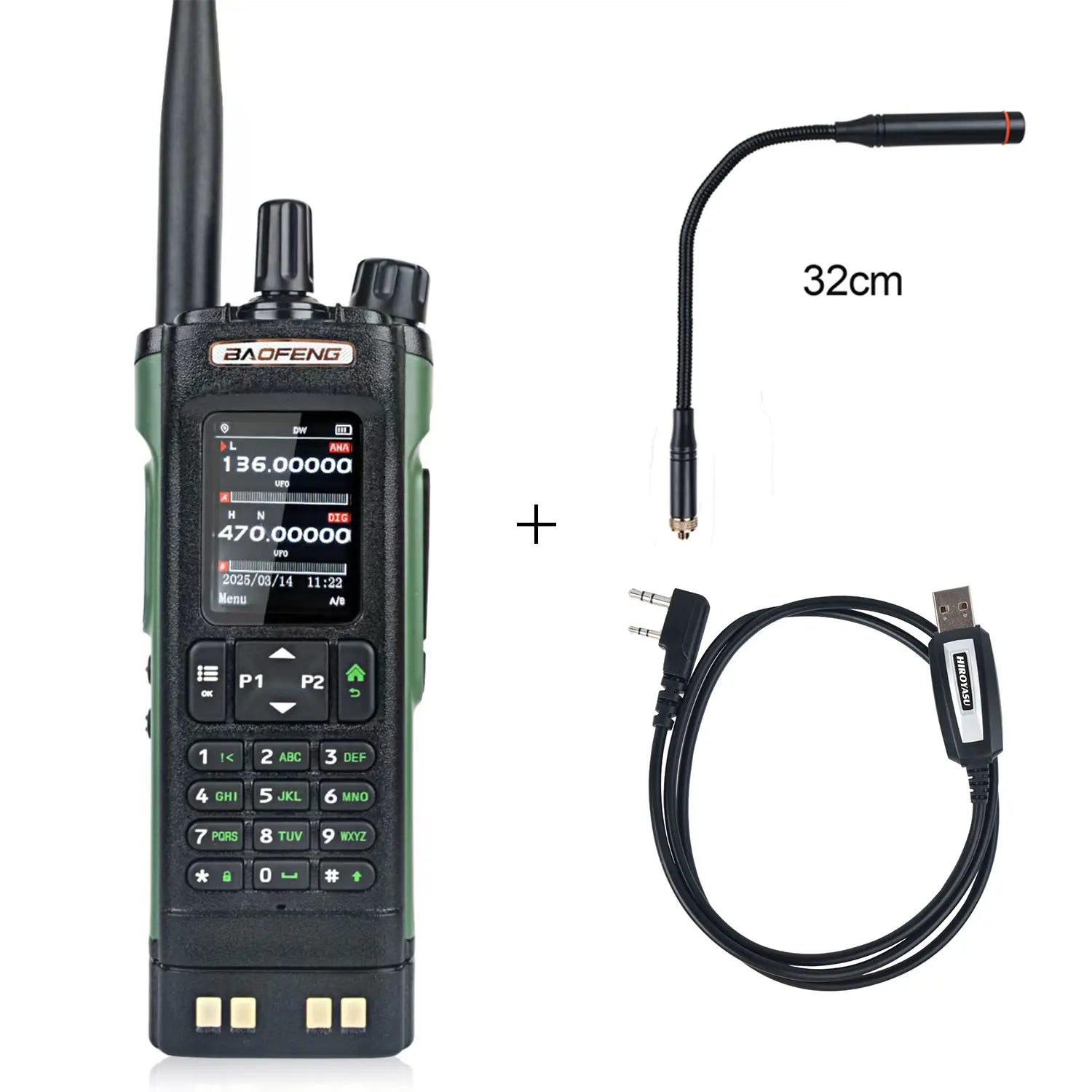

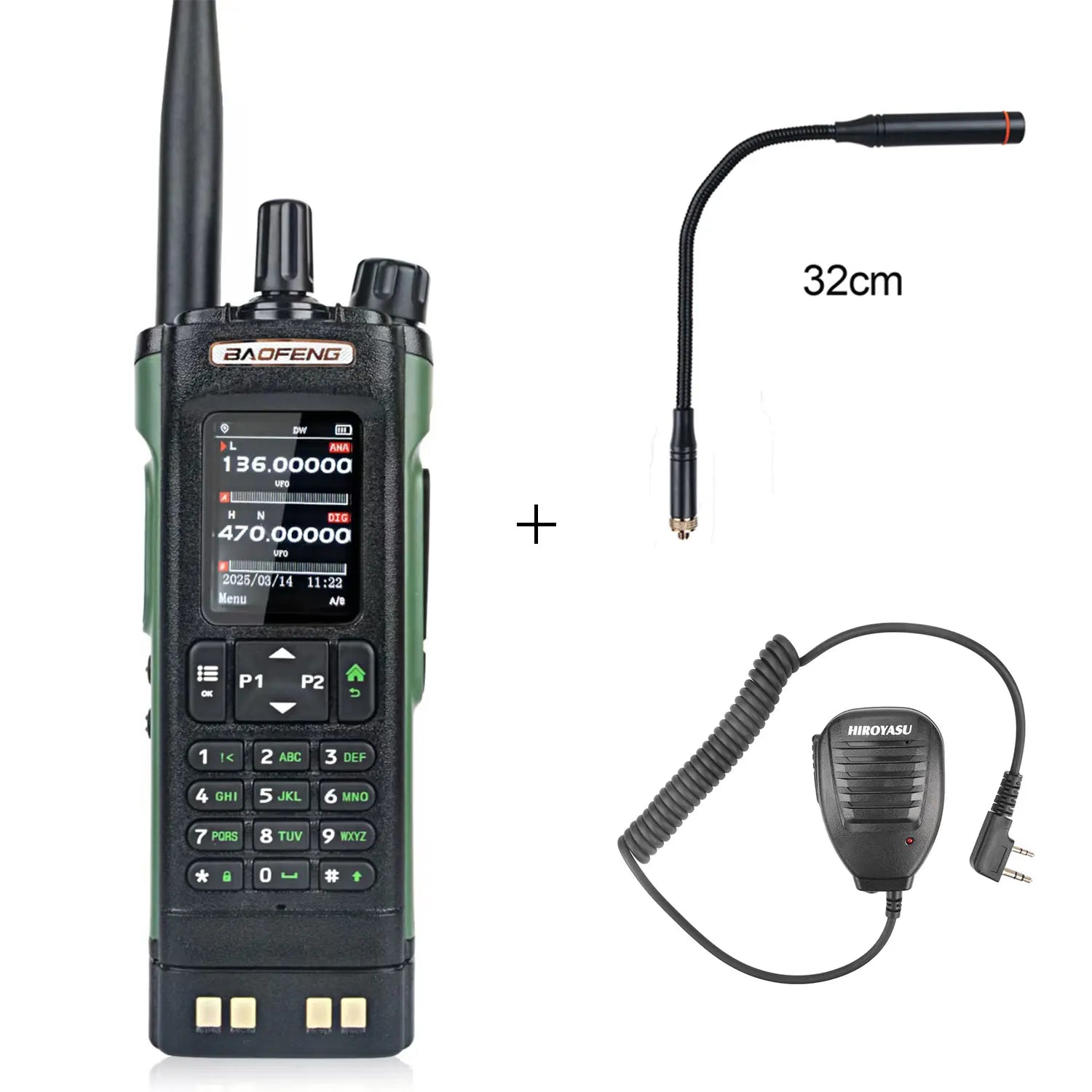

1×Goose Tube Tactical Dual Band Antenna32CM (Optional)

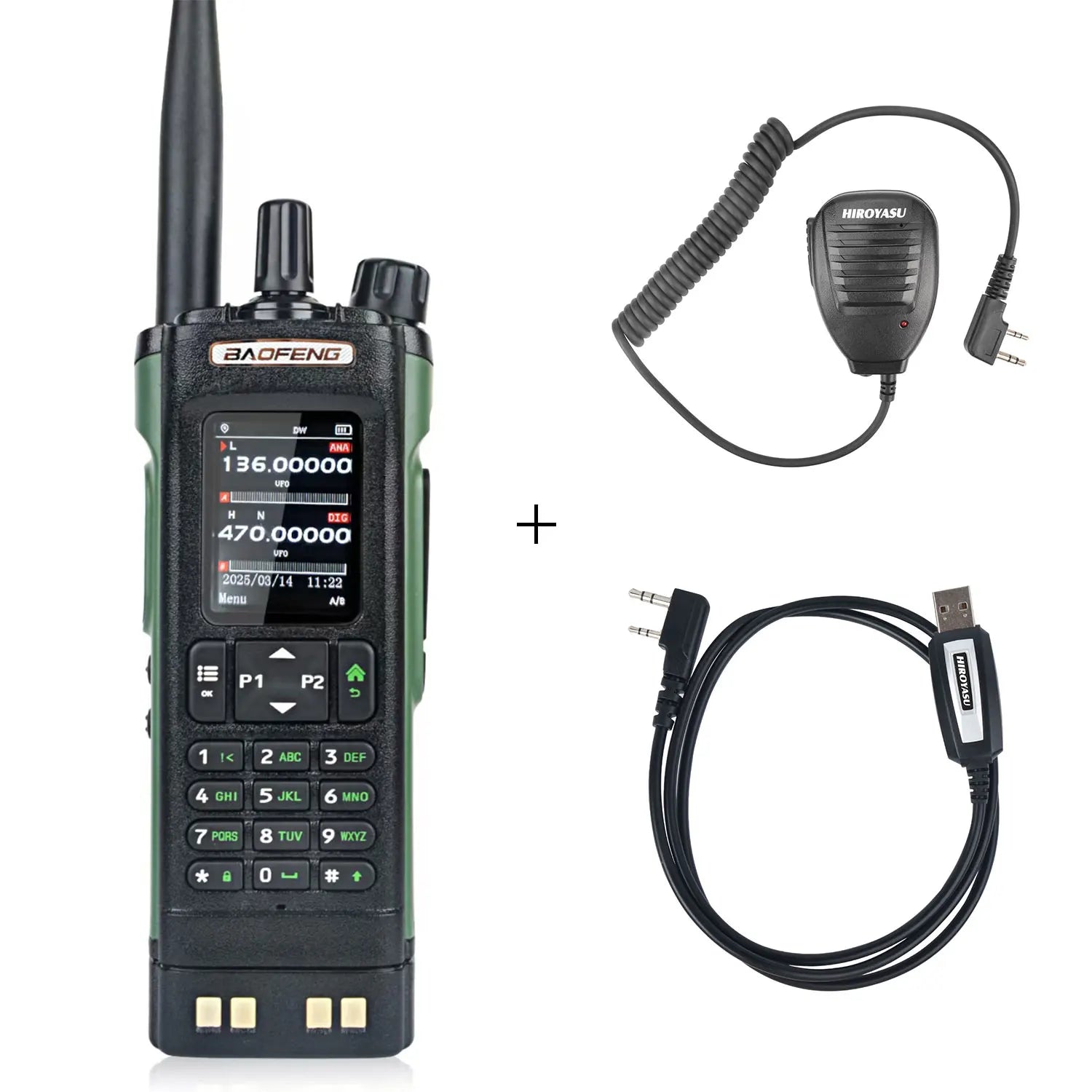

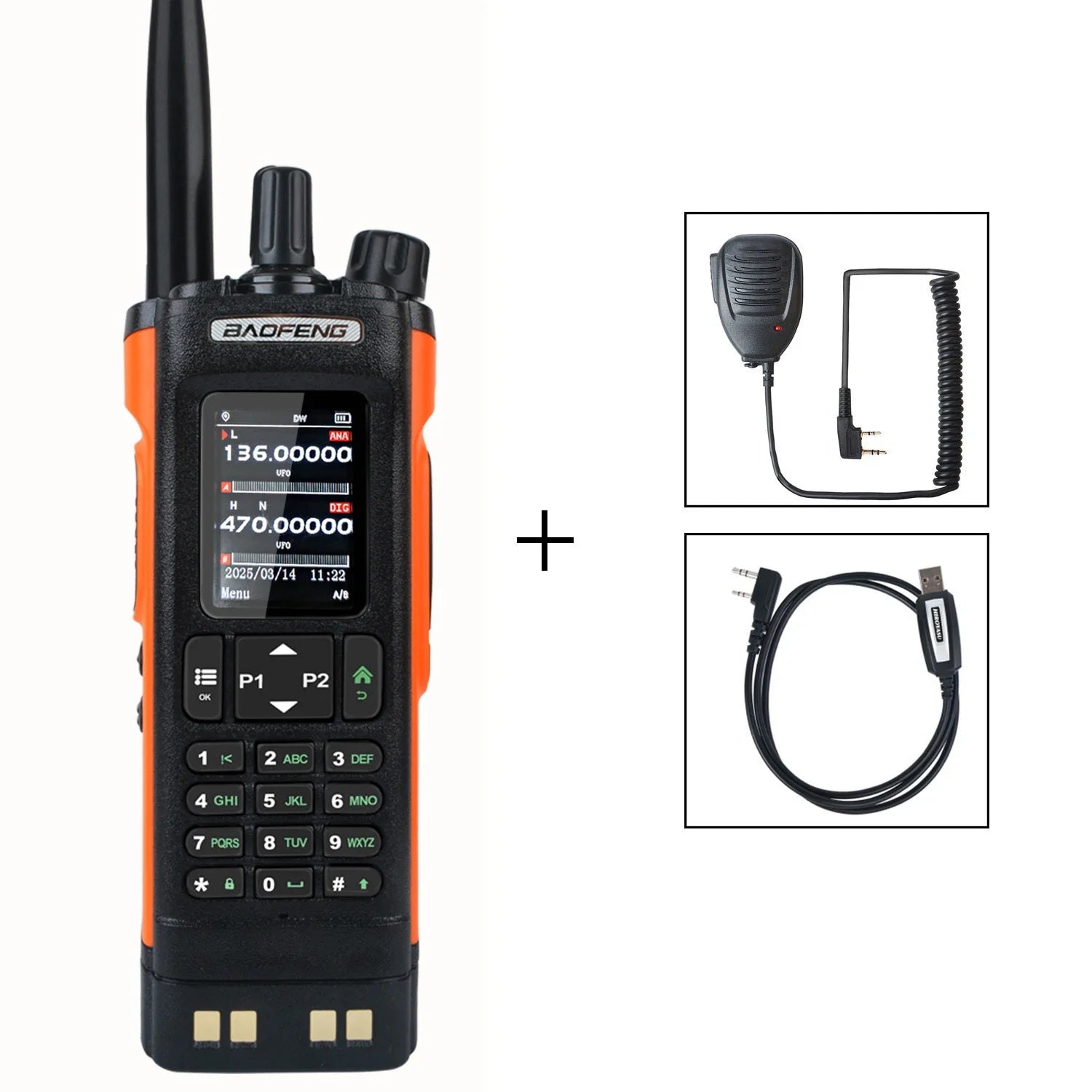

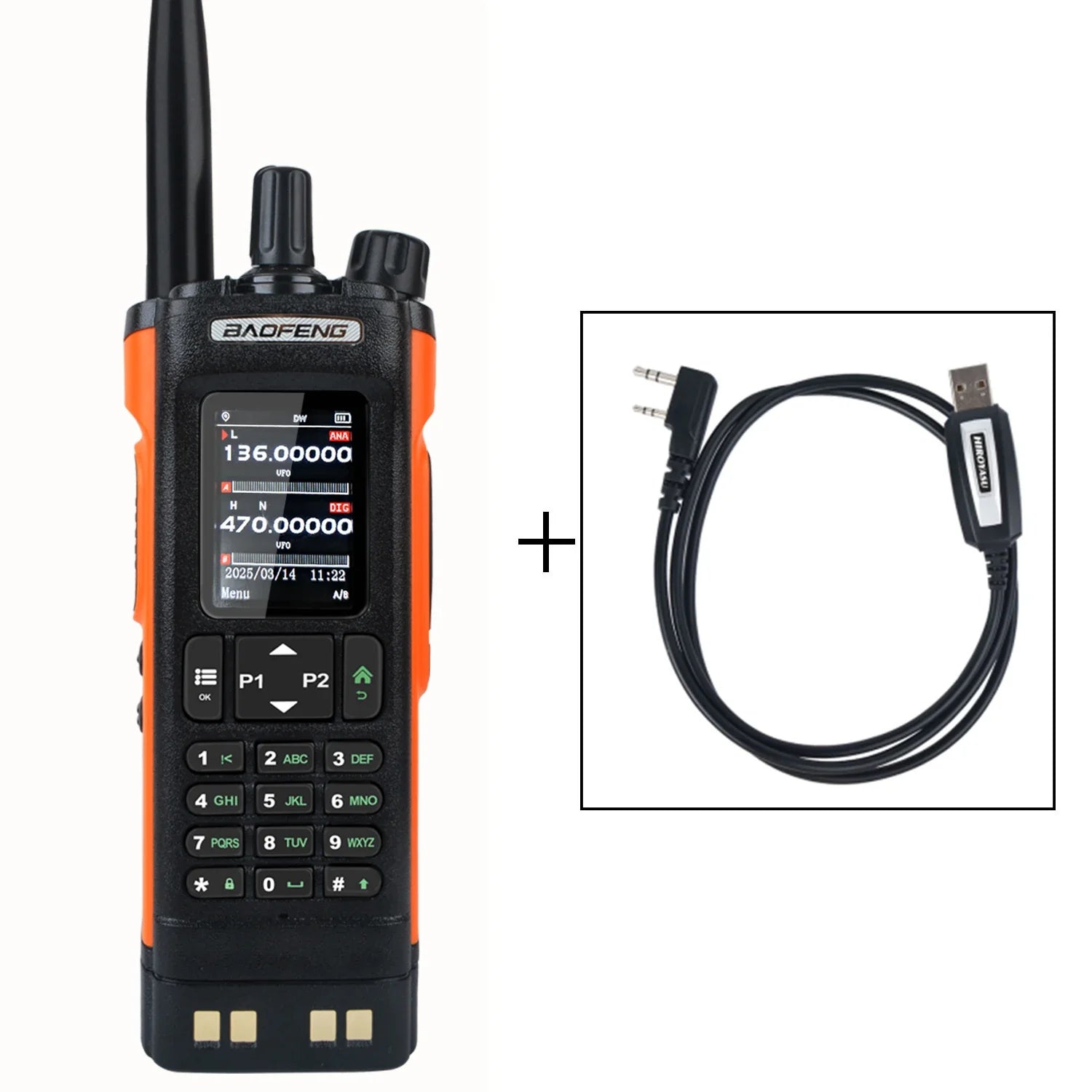

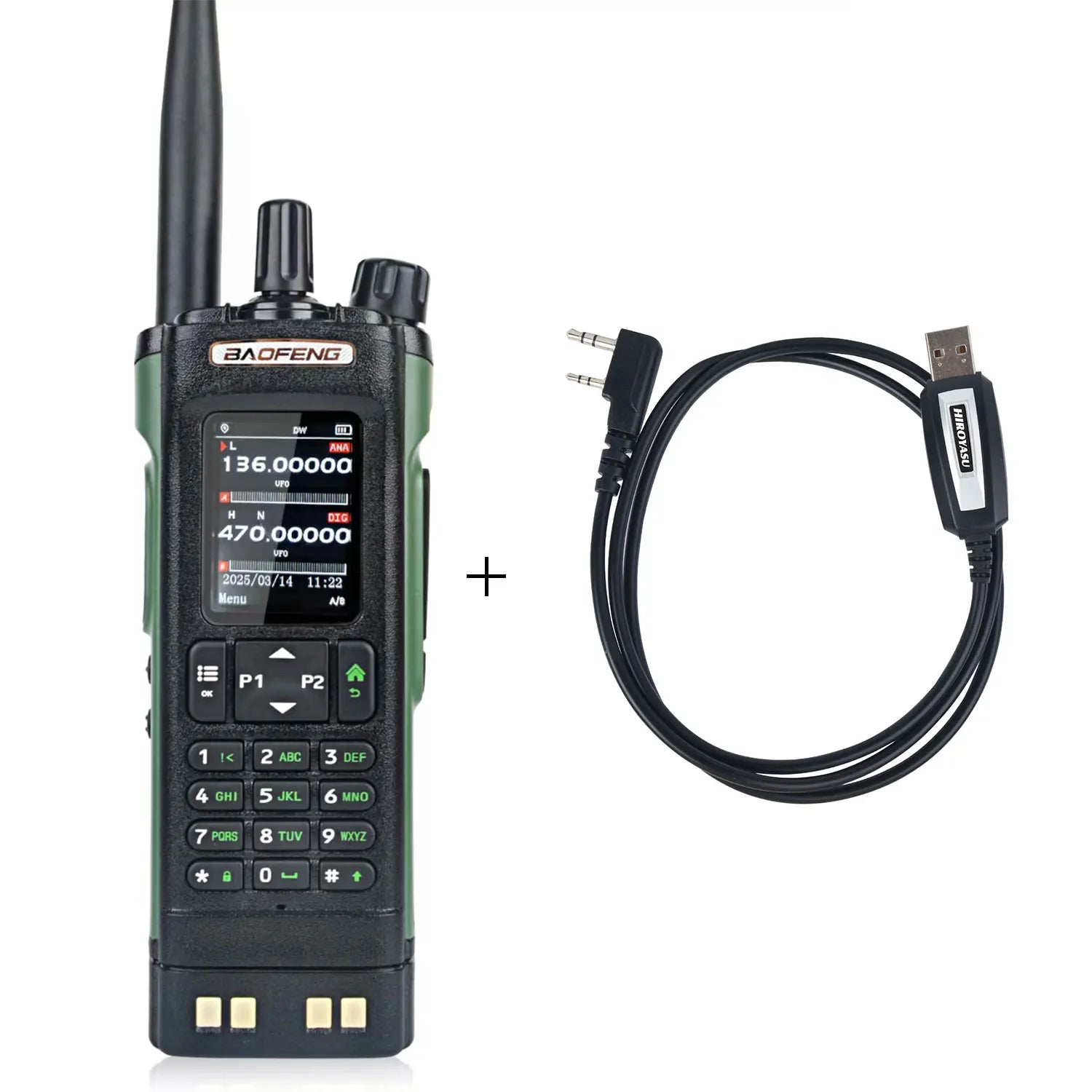

1×USB Programming Cable (Optional)

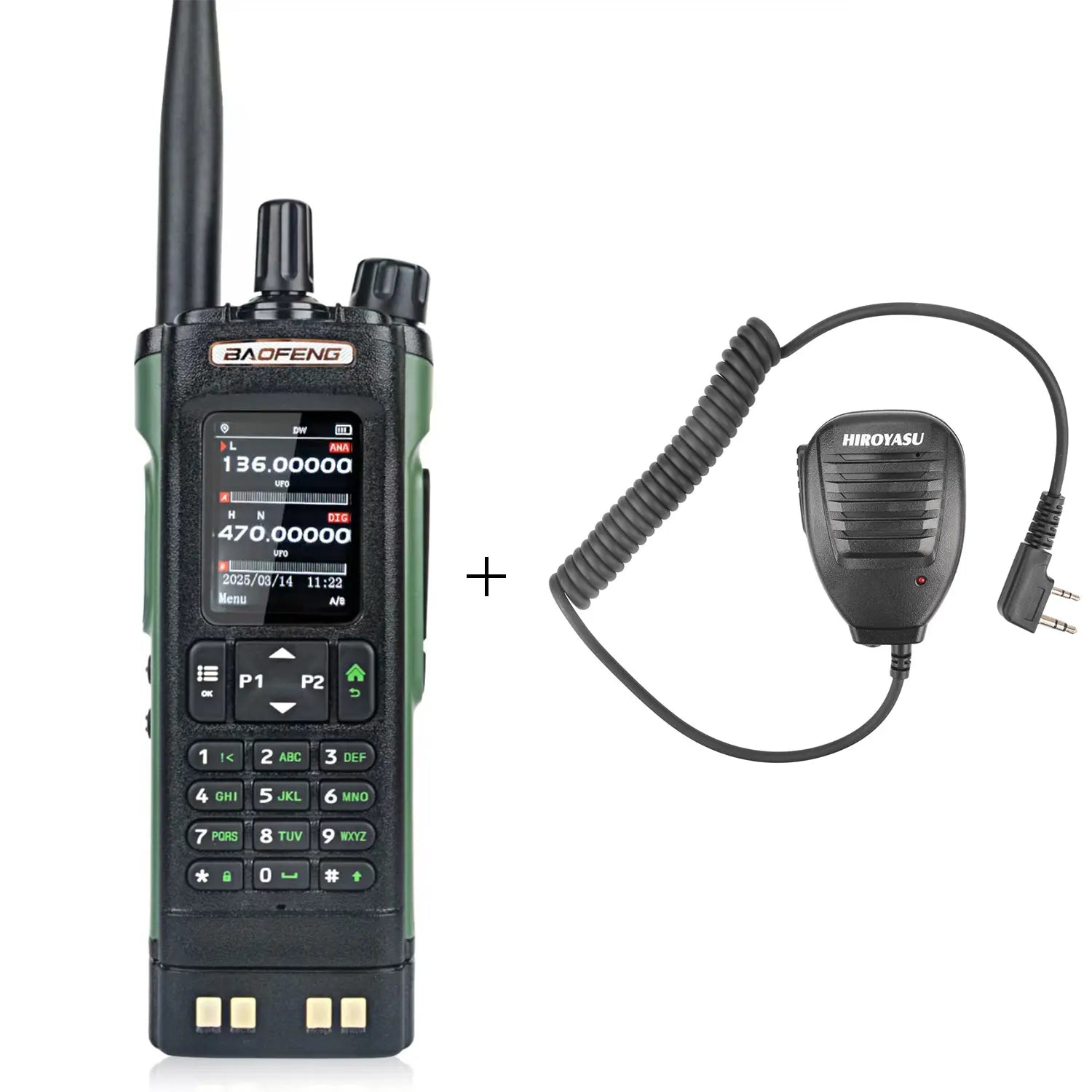

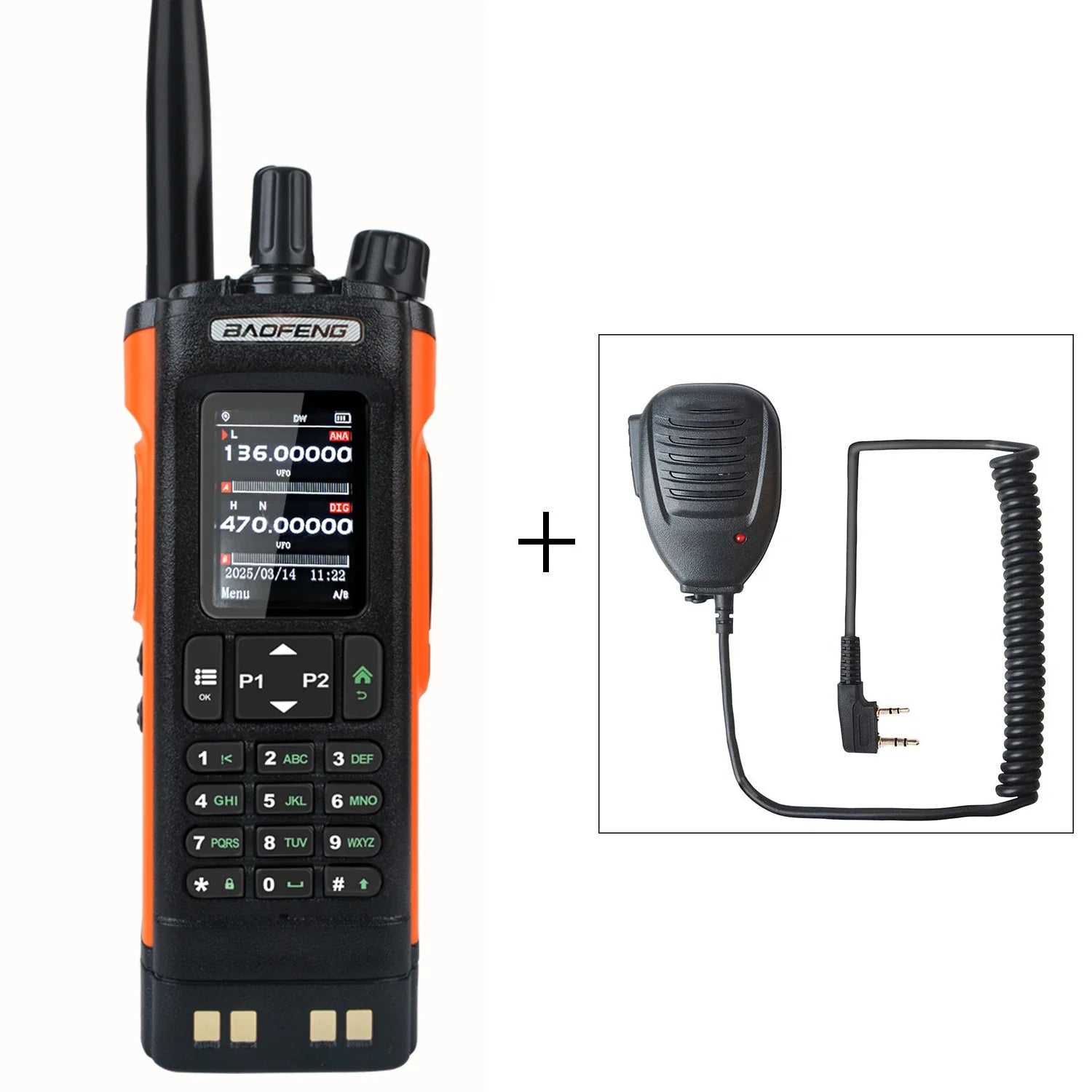

1×Speaker Microphone (Optional)
1×Desktop Charger
1×AC Adapter
1× Belt Clip
1× ABS Plastic Holster
1× ENG Manual
